Welding Machines

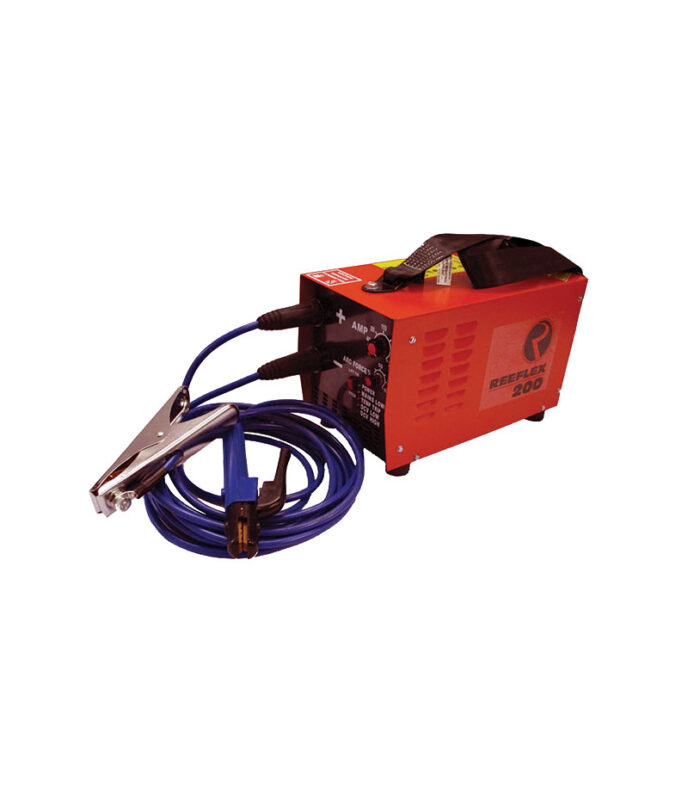

Inverter Welder Range
Download Inverter Welder Leaflet

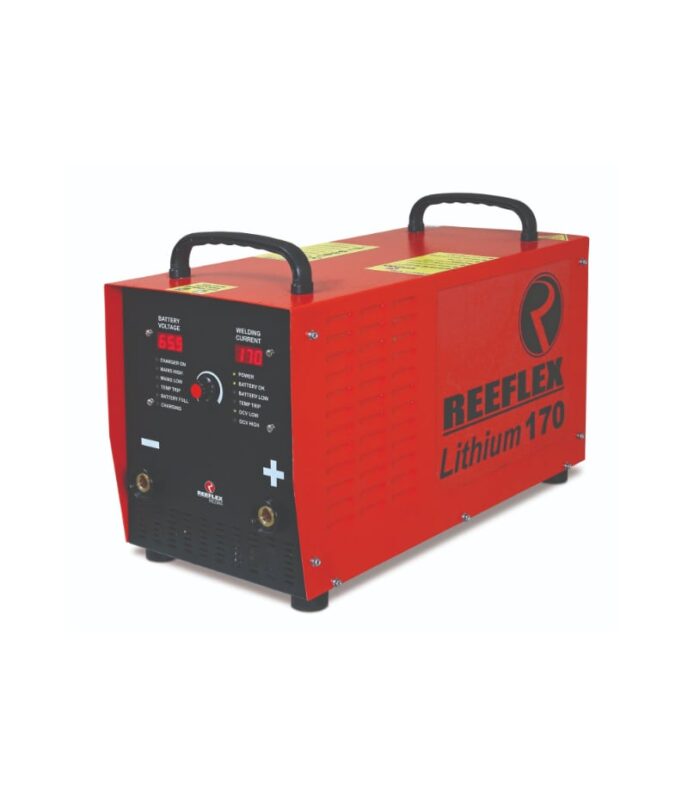

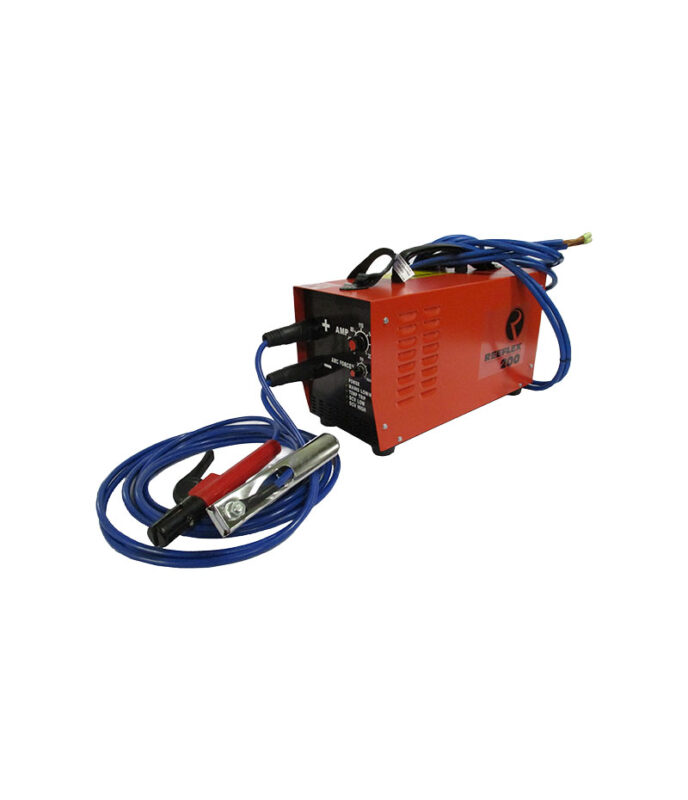

Loco Battery Welders
Download Loco Battery Welders

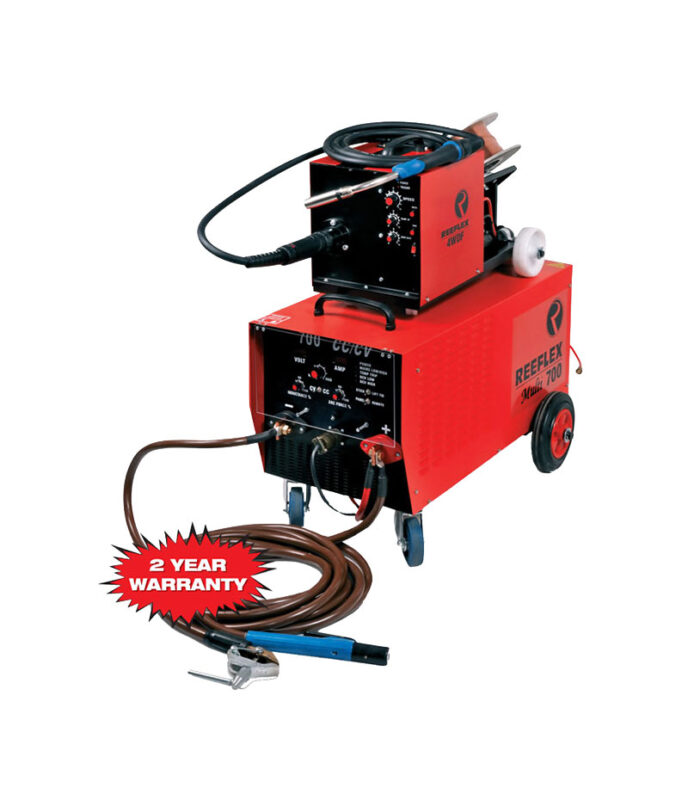

Multi-Process DC Inverter Welder Range
MAIN BENEFITS
The REEFLEX® Multi range of DC inverter welders are multiprocess machines, giving the user ultimate flexibility, performance and portability. The output characteristics are changed between CC and CV by the flick of a switch, giving excellent welding on STICK welding, easy arc starting with LIFT TIG and low spatter welding with MIG (solid or fluxcored wire) or MAG welding. Having 100 % duty cycle means that these machines can be used for maintenance and production applications. Adjustable ARC FORCE for CC, and adjustable INDUCTANCE for CV enables each process to be fine tuned to obtain optimum results.
Standard on all REEFLEX® Multi machines are separate digital VOLT and AMP meters which continuously indicate output voltage and output current, thereby enabling the operator to be in full control of all welding parameters.
The dual voltage models have built-in protection circuitry, eliminating any damage to machine or wire feeder if connected to the wrong supply voltage.
Download Multi-Process DC Inverter Welder Range

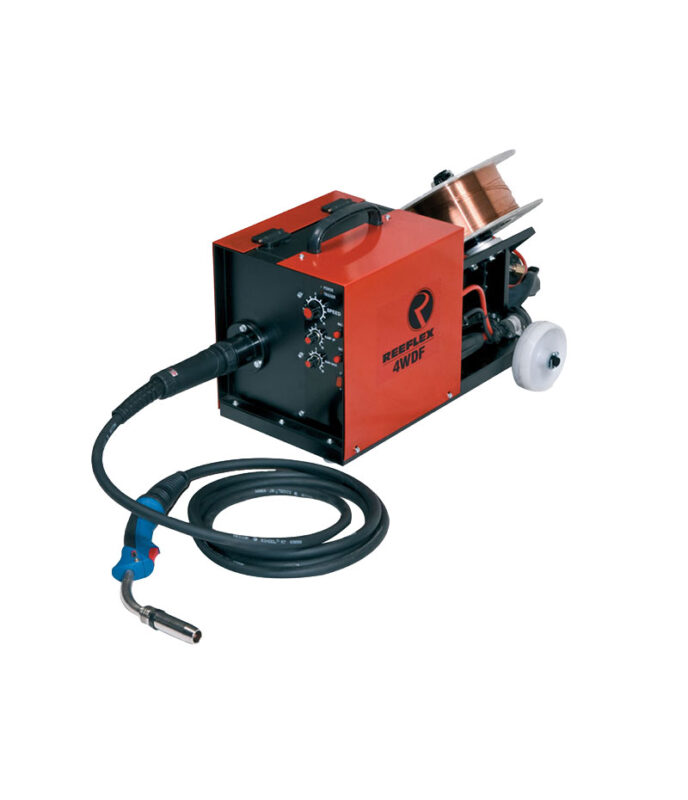

4-Wheel Drive Wire Feeder
Designed and Manufactured in South Africa for harsh african welding conditions
Features
- Very robust 120 W DC Motor and Drive Gears
- Very accurate speed control – superb welding
- Ramp-up control – controlled acceleration
- Gas pre-flow and postflow built-in – factory adjustable
- Burn back control
- Wire sizes from 0,6 mm 0 to 3,2 mm 0
- Takes all sizes and types of MIG/MAG wire e.g. mild steel, stainless, aluminium, flux-core etc.
- Power and Trigger LED indicators
- 2 Year guarantee
- 2T/4T trigger configuration selectable
- Gas purge function
- Inch control
- Robust wheels
- Trolley available
