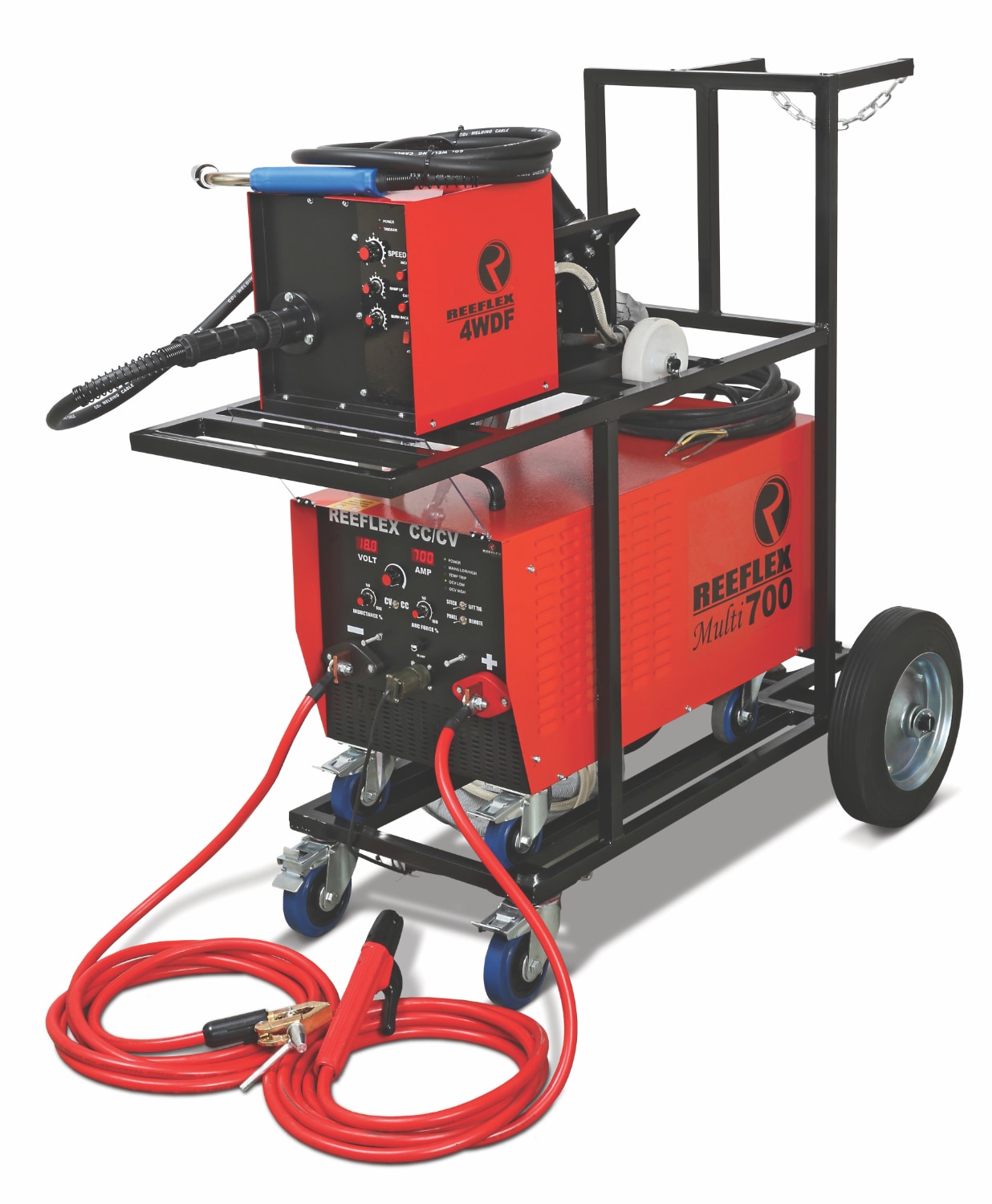

| MULTI-PROCESS DC INVERTER |
700 AMP |
YES |
| PRIMARY |
|
|
|
Dual Voltages Only |
| INPUT |
380V |
525V |
| VOLTAGE |
3 phase |
3 phase |
|
± 15% |
±15% |
| INPUT |
53A |
38A |
| CURRENT |
per phase |
per phase |
| DUAL VOLTAGE OPTION |
YES |
| SECONDARY |
|
|
| DC WELDING CURRENT |
700A44V |
| OPEN CIRCUIT VOLTAGE |
85V |
| DUTY CYCLE |
60% @ 700A/ 100% @ 600A |
| CC CURRENT RANGE |
70-700A |
| CV VOLTAGE RANGE |
15-40V |
| CC LIFT TIG |
YES |
| CC ARC FORCE |
YES |
| CV INDUCTANCE |
YES |
| DIGITAL DISPLAY – CURRENT |
YES |
| VOLTAGE |
YES |
| OUTPUT FOR WIRE FEEDER |
24V AC/200VA |
| CONNECTION FOR REMOTE |
Standard |
| RODS / WIRE SIZES – ARC |
2.5-Maximum |
| MIG |
0.8-1.6 mm |
| TIG |
1.6-3.2 mm |
| GOUGING |
12 mm |
| BUILD-IN VOLTAGE REDUCER |
YES |
|
| OVER / UNDER VOLTAGE PROTECTION |
YES |
| OVER TEMPERATURE PROTECTION |
YES |
| COOLING |
FAN |
| DIMENSIONS HEIGHT |
370 mm |
| WIDHT |
380 mm |
| LENGTH |
810 mm |
| WEIGHT |
60 kg |
