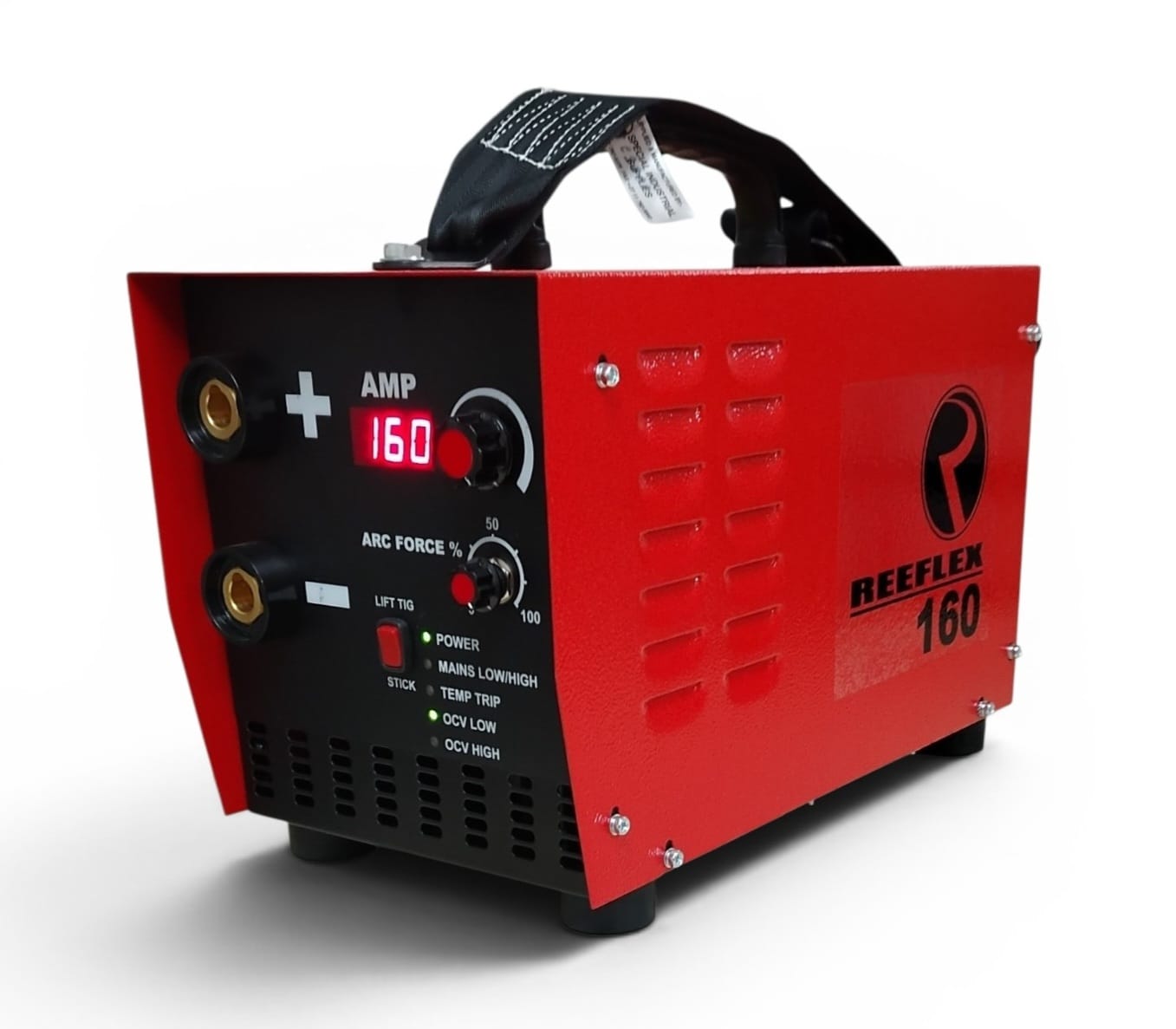

Reeflex 160A / 220V DC Inverter CC
| PRIMARY | |
|---|---|
| INPUT | 220 V |
| VOLTAGE | 1 phase |
| ±15% | |
| INPUT |
28A
|
| CURRENT | |
| DUAL VOLTAGE OPTION | No |
| SECONDARY | |
|---|---|
| DC WELDING CURRENT | 160A/27V |
| DUTY CYCLE AT MAXIMUM OUTPUT | 100% |
| CURRENT RANGE | 16-160A |
| OPEN CIRCUIT VOLTAGE | 15/60V |
| CONSTANT CURRENT |
Yes
|
| FOR DC TIG | |
| WELDING LIFT ARC | Yes |
| ARC FORCE | Adjustable |
| MAX ELECTRODE DIAMETER | 4 mm |
| COOLING | Fan |
| DIMENSIONS HEIGHT | 220 mm |
| WIDTH | 200 mm |
| LENGTH | 380 mm |
| WEIGHT | 9 kg |
| BUILT-IN VOLTAGE REDUCER | YES |
