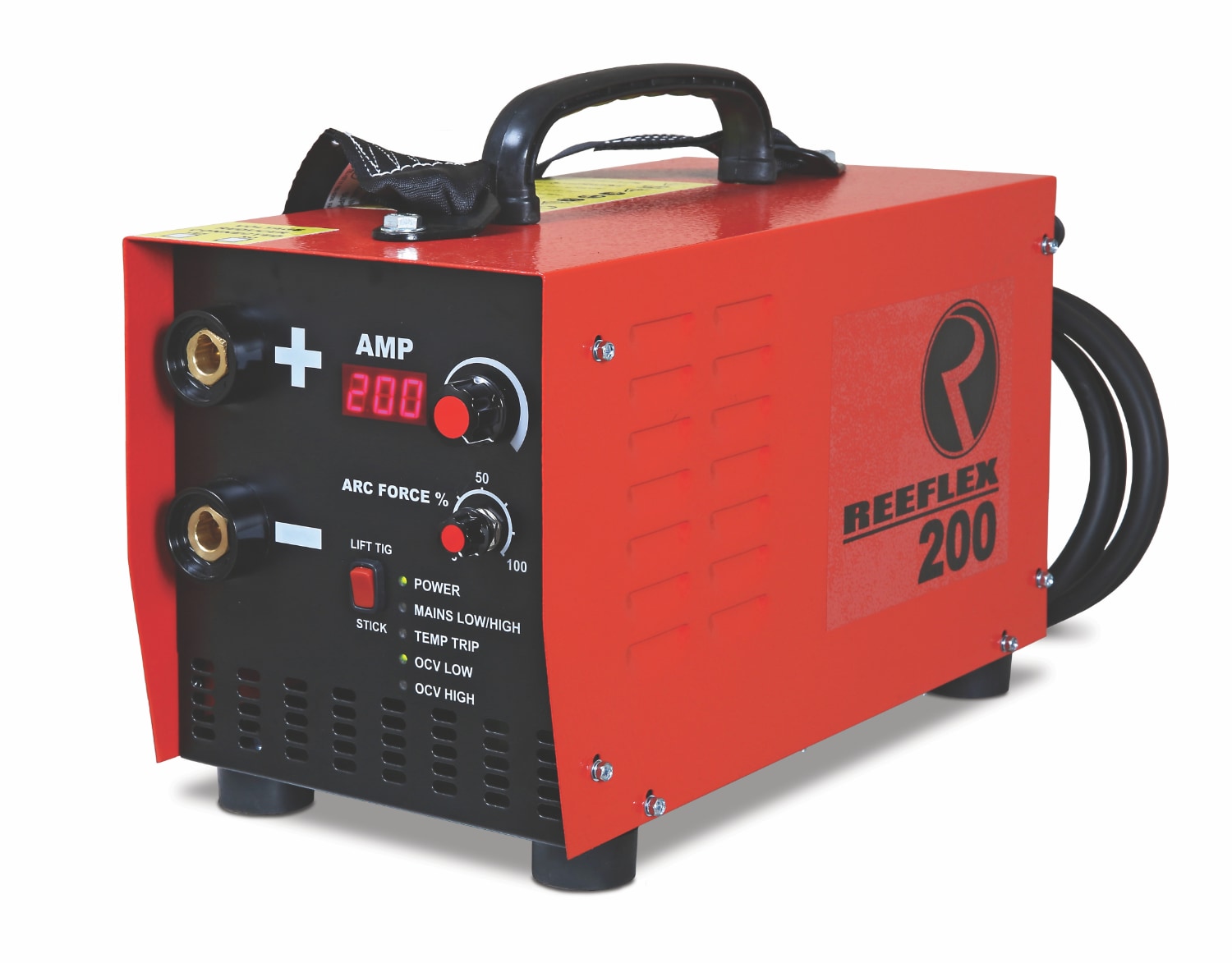

Reeflex 200A / 220V DC Inverter CC
April 26, 2018Reeflex 300A – 380V / 525V / Dual DC Inverter CC
April 26, 2018
Reeflex 200A – 380V / 525V DC Inverter CC
| PRIMARY |
|
|
| INPUT |
380V |
525V |
| VOLTAGE |
3 phase |
3 phase |
|
±15% |
±15% |
| INPUT |
10A |
7A |
| CURRENT |
per phase |
per phase |
| DUAL VOLTAGE OPTION |
No |
| SECONDARY |
|
| DC WELDING CURRENT |
200A/28V |
| DUTY CYCLE AT MAXIMUM OUTPUT |
100% |
| CURRENT RANGE |
20-200A |
| OPEN CIRCUIT VOLTAGE |
15/60V |
| CONSTANT CURRENT |
Yes
|
| FOR DC TIG |
| WELDING LIFT ARC |
Yes |
| ARC FORCE |
Adjustable |
| MAX ELECTRODE DIAMETER |
5 mm |
| COOLING |
Fan |
| DIMENSIONS HEIGHT |
220 mm |
| WIDTH |
200 mm |
| LENGTH |
380 mm |
| WEIGHT |
10 kg |
| BUILT-IN VOLTAGE REDUCER |
YES |
