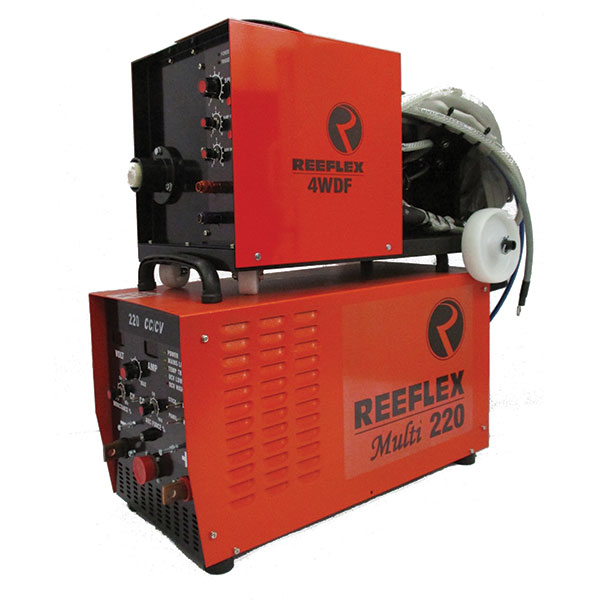

Reeflex 220A – 220V Multi Process CCCV Inverter
| MULTI-PROCESS DC INVERTER |
220 AMP |
| PRIMARY |
|
| INPUT |
220V |
| VOLTAGE |
1 phase |
|
±15% |
| INPUT |
34A |
| CURRENT |
| DUAL VOLTAGE OPTION |
NO |
| SECONDARY |
|
| DC WELDING CURRENT |
220A / 28V |
| OPEN CIRCUIT VOLTAGE |
60V |
| DUTY CYCLE |
100% |
| CC CURRENT RANGE |
20 – 220A |
| CV VOLTAGE RANGE |
14 – 28V |
| CC LIFT TIG |
YES |
| CC ARC FORCE |
YES |
| CV INDUCTANCE |
YES |
| DIGITAL DISPLAY – CURRENT |
YES |
| VOLTAGE |
YES |
| OUTPUT FOR WIRE FEEDER |
24V AC 200VA |
| CONNECTION FOR REMOTE |
Standard |
| RODS / WIRE SIZES – ARC |
2,5 – 5,0 mm |
| MIG |
0,8 – 1,2 mm |
| TIG |
1,6 – 3,2 mm |
| GOUGING |
– |
| BUILD-IN VOLTAGE REDUCER |
YES |
| OVER / UNDER VOLTAGE PROTECTION |
YES |
| OVER TEMPERATURE PROTECTION |
YES |
| COOLING |
FAN |
| DIMENSIONS HEIGHT |
310 mm |
| WIDHT |
265 mm |
| LENGTH |
590 mm |
| WEIGHT |
30 kg |
