Reeflex 500A – 380V / 525V / Dual DC Inverter CC
| PRIMARY | ||
|---|---|---|
| INPUT | 380V | 525V |
| VOLTAGE | 3 phase | 3 phase |
| ±15% | ±15% | |
| INPUT | 40A | 30A |
| CURRENT | per phase | per phase |
| DUAL VOLTAGE OPTION | Yes |
| SECONDARY | |
|---|---|
| DC WELDING CURRENT | 500A/44V |
| DUTY CYCLE AT MAXIMUM OUTPUT | 100% |
| CURRENT RANGE | 50-500A |
| OPEN CIRCUIT VOLTAGE | 15/80V |
| CONSTANT CURRENT |
Yes
|
| FOR DC TIG | |
| WELDING LIFT ARC | Optional |
| ARC FORCE | Adjustable |
| MAX ELECTRODE DIAMETER | Maximum |
| COOLING | Fan |
| DIMENSIONS HEIGHT | 300 mm |
| WIDTH | 240 mm |
| LENGTH | 650 mm |
| WEIGHT | 35 kg |
| BUILT-IN VOLTAGE REDUCER | YES |
Reeflex 500A – 380V / 525V / Dual Multi Process CCCV Inverter
|
MULTI-PROCESS DC INVERTER
|
500 AMP
|
|
| PRIMARY | ||
|---|---|---|
| INPUT | 380V | 525V |
| VOLTAGE | 3 phase | 3 phase |
| ± 15% | ±15% | |
| INPUT | 40A | 30A |
| CURRENT | per phase | per phase |
| DUAL VOLTAGE OPTION | YES | |
| SECONDARY | ||
| DC WELDING CURRENT | 500A/40V | |
| OPEN CIRCUIT VOLTAGE | 80V | |
| DUTY CYCLE | 100% | |
| CC CURRENT RANGE | 50-500A | |
| CV VOLTAGE RANGE | 15-40V | |
| CC LIFT TIG | YES | |
| CC ARC FORCE | YES | |
| CV INDUCTANCE | YES | |
| DIGITAL DISPLAY – CURRENT | YES | |
| VOLTAGE | YES | |
| OUTPUT FOR WIRE FEEDER | 24V AC/200VA | |
| CONNECTION FOR REMOTE | Standard | |
| RODS / WIRE SIZES – ARC | 2.5-Maximum | |
| MIG | 0.8-1.6 mm | |
| TIG | 1.6-3.2 mm | |
| GOUGING | 9.5 mm | |
| BUILD-IN VOLTAGE REDUCER | YES | |
| OVER / UNDER VOLTAGE PROTECTION | YES | |
| OVER TEMPERATURE PROTECTION | YES | |
| COOLING | FAN | |
| DIMENSIONS HEIGHT | 350 mm | |
| WIDHT | 350 mm | |
| LENGTH | 755 mm | |
| WEIGHT | 55 kg | |

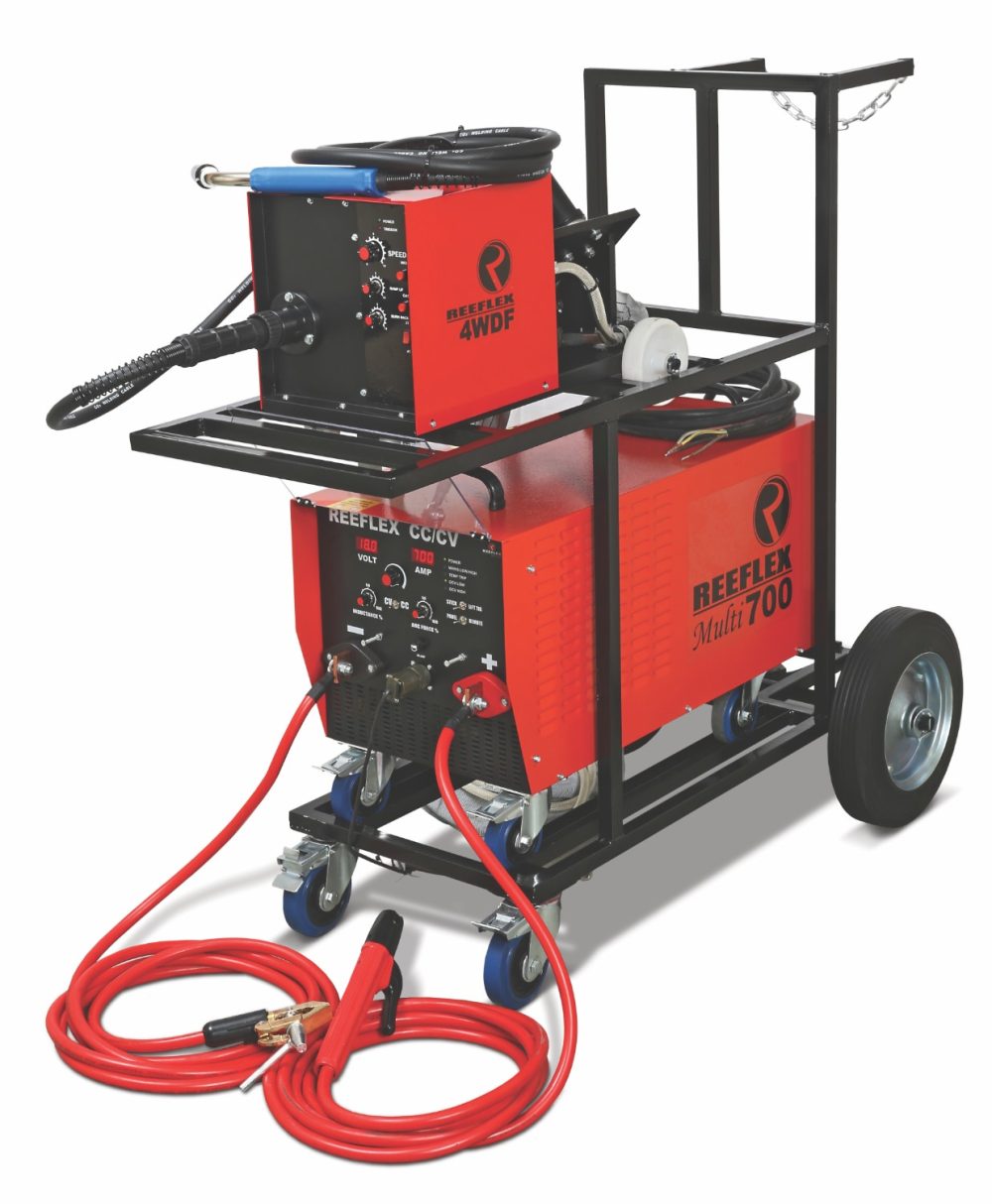

Reeflex 700A / Dual Multi Process CCCV Inverter
| MULTI-PROCESS DC INVERTER | 700 AMP | YES |
| PRIMARY | ||
|---|---|---|
| Dual Voltages Only | ||
| INPUT | 380V | 525V |
| VOLTAGE | 3 phase | 3 phase |
| ± 15% | ±15% | |
| INPUT | 53A | 38A |
| CURRENT | per phase | per phase |
| DUAL VOLTAGE OPTION | YES | |
| SECONDARY | ||
| DC WELDING CURRENT | 700A44V | |
| OPEN CIRCUIT VOLTAGE | 85V | |
| DUTY CYCLE | 60% @ 700A/ 100% @ 600A | |
| CC CURRENT RANGE | 70-700A | |
| CV VOLTAGE RANGE | 15-40V | |
| CC LIFT TIG | YES | |
| CC ARC FORCE | YES | |
| CV INDUCTANCE | YES | |
| DIGITAL DISPLAY – CURRENT | YES | |
| VOLTAGE | YES | |
| OUTPUT FOR WIRE FEEDER | 24V AC/200VA | |
| CONNECTION FOR REMOTE | Standard | |
| RODS / WIRE SIZES – ARC | 2.5-Maximum | |
| MIG | 0.8-1.6 mm | |
| TIG | 1.6-3.2 mm | |
| GOUGING | 12 mm | |
| BUILD-IN VOLTAGE REDUCER | YES | |
| OVER / UNDER VOLTAGE PROTECTION | YES | |
| OVER TEMPERATURE PROTECTION | YES | |
| COOLING | FAN | |
| DIMENSIONS HEIGHT | 370 mm | |
| WIDHT | 380 mm | |
| LENGTH | 810 mm | |
| WEIGHT | 60 kg | |
Reeflex DC Inverters CC
Designed and manufactured in South Africa for harsh African welding conditions.
- Very robust 120 W DC Motor
- Very accurate speed control – superb welding
- Ramp Up Controlled – controlled acceleration
- Gas pre-flow and postflow built in – factory adjustable
- Burn back control
- Wire sizes from 0,6mm to 3,2mm
- Takes all sizes and types of MIG/MAG wire e.g. mild steel, stainless steel ,aluminium and flux-core etc.
- Power and Trigger LED indicators
- 2 Year Warranty
- 2T/4T trigger Gas Purge Function
- Inch control
- Robust wheels

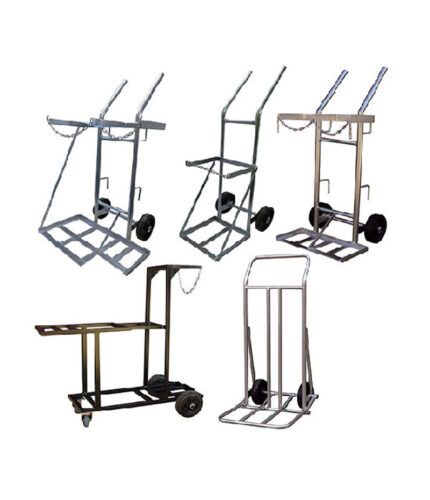

- Trolley available
Reeflex Lithium 170
| PRIMARY | |
|---|---|
| INPUT VOLTAGE | 220V 1 phase ±15% |
| INPUT CURRENT | 12A |
| SECONDARY | |
|---|---|
| DC WELDING CURRENT | 170A/22V |
| DUTY CYCLE AT MAXIMUM OUTPUT | 100% |
| CURRENT RANGE | 0 – 170A |
| OPEN CIRCUIT VOLTAGE | 15/70 |
| CONSTANT CURRENT FOR DC TIG WELDING |
Yes
|
| ARC FORCE | Set |
| MAXIMUM ELECTRODE DIAMETER | 4 mm |
| COOLING | Fan |
| DIMENSIONS HEIGHT | 310 mm |
| WIDTH | 265 mm |
| LENGTH | 590 mm |
| WEIGHT | 20 kg |
| BUILT-IN VOLTAGE REDUCER | YES |
Reeflex Loco Battery Inverters CC
Designed and manufactured in South Africa for harsh African welding conditions.
- Very robust 120 W DC Motor
- Very accurate speed control – superb welding
- Ramp Up Controlled – controlled acceleration
- Gas pre-flow and postflow built in – factory adjustable
- Burn back control
- Wire sizes from 0,6mm to 3,2mm
- Takes all sizes and types of MIG/MAG wire e.g. mild steel, stainless steel ,aluminium and flux-core etc.
- Power and Trigger LED indicators
- 2 Year Warranty
- 2T/4T trigger Gas Purge Function
- Inch control
- Robust wheels
- Trolley available
Reeflex Loco Battery Welder 200A
| PRIMARY | 42 CELL | 60 CELL |
|---|---|---|
| INPUT VOLTAGE | 84 VDC ± 15% |
120 VDC ± 15% |
| INPUT CURRENT | 60A max | 40A max |
| REVERSE POLARITY PROTECTION | Yes | Yes |
| SECONDARY | ||
| DC WELDING CURRENT | 160A/27V | 160A/27V |
| DUTY CYCLE AT MAXIMUM OUTPUT | 100% | 100% |
| CURRENT RANGE | 16-160A | 16-160A |
| OPEN CIRCUIT VOLTAGE | 15/60 | 15/60 |
| CONSTANT CURRENT FOR DC TIG WELDING | YES | YES |
| ARC FORCE | YES | YES |
| MAX ELECTRODE DIAMETER | 4 mm | 4 mm |
| COOLING | Fan | Fan |
| DIMENSIONS | HEIGHT | 220 mm | 220 mm |
| WIDTH | 200 mm | 200 mm |
| LENGTH | 380 mm | 380 mm |
| WEIGHT | 10 kg | 10 kg |
| BUILT-IN VOLTAGE REDUCER | YES | YES |
Reeflex Multi Process Inverters CCCV
Designed and manufactured in South Africa for harsh African welding conditions.
- Very robust 120 W DC Motor
- Very accurate speed control – superb welding
- Ramp Up Controlled – controlled acceleration
- Gas pre-flow and postflow built in – factory adjustable
- Burn back control
- Wire sizes from 0,6mm to 3,2mm
- Takes all sizes and types of MIG/MAG wire e.g. mild steel, stainless steel ,aluminium and flux-core etc.
- Power and Trigger LED indicators
- 2 Year Warranty
- 2T/4T trigger Gas Purge Function
- Inch control
- Robust wheels
- Trolley available

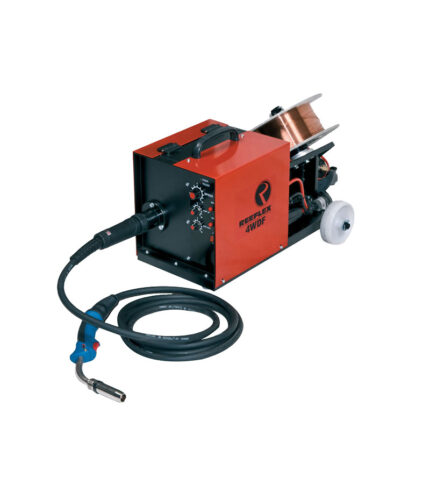

Reeflex Wire Feeders
Designed and manufactured in South Africa for harsh African welding conditions.
- Very robust 120 W DC Motor
- Very accurate speed control – superb welding
- Ramp Up Controlled – controlled acceleration
- Gas pre-flow and postflow built in – factory adjustable
- Burn back control
- Wire sizes from 0,6mm to 3,2mm
- Takes all sizes and types of MIG/MAG wire e.g. mild steel, stainless steel ,aluminium and flux-core etc.
- Power and Trigger LED indicators
- 2 Year Warranty
- 2T/4T trigger Gas Purge Function
- Inch control
- Robust wheels
- Trolley available
